1.2m x 1.2m (400 Litre) Collapsible Spill Bund PVC

Fast Shipping Australia Wide!

SKU: SC1212

Write a review
$1,232.00
Fast Onsite Delivery
30 Day Guarantee
100% Secure

Share

Description

A picture containing text, clipart Description automatically generated

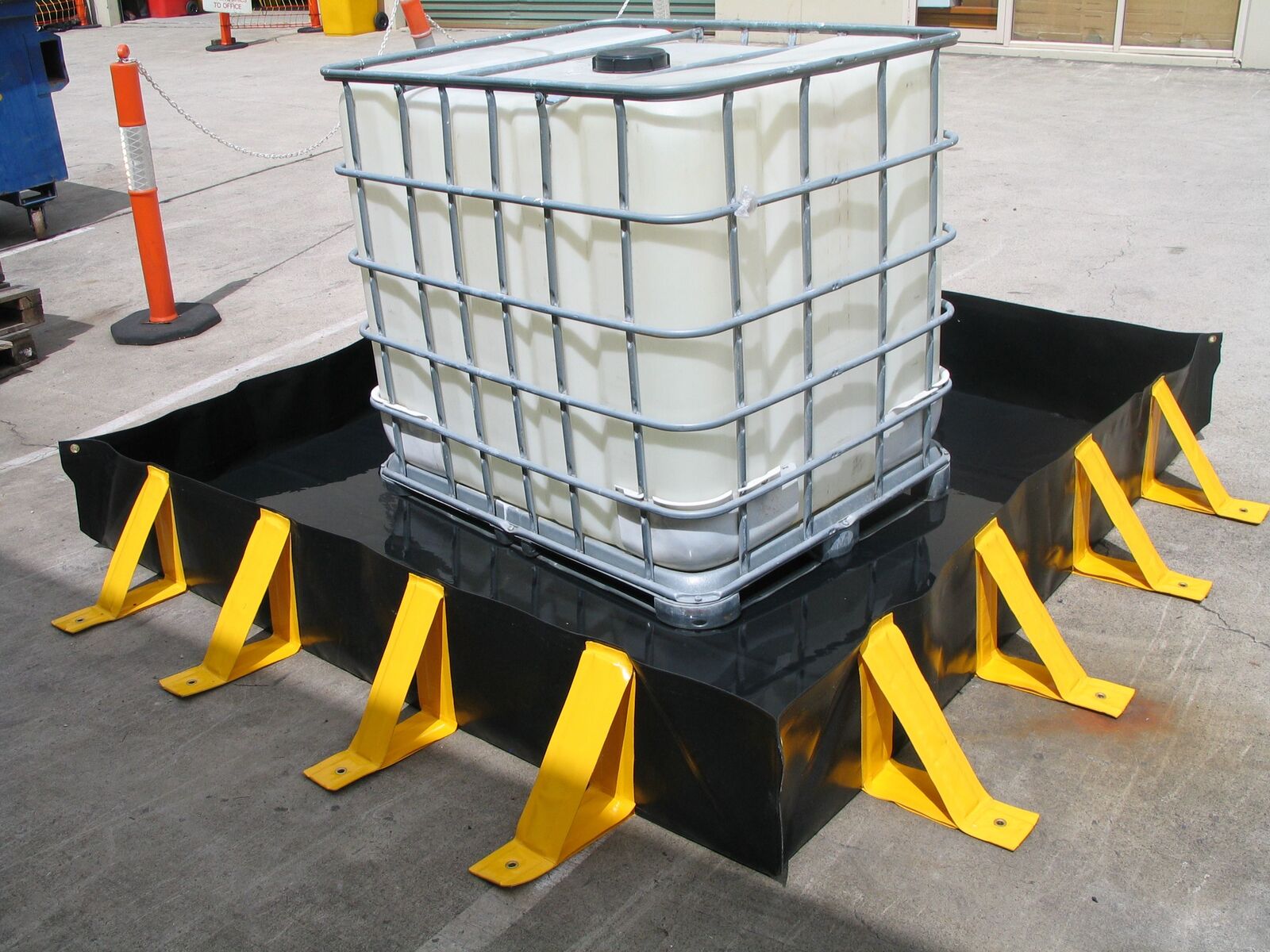

Temporary, Portable Containment Bunds



Portable Containment Bunds (PCB’s) also known as a spill berm and spill bund, our ExoGuard collapsible Portable Containment Bunds are designed for use in a variety of spill containment and chemical containment needs common in mining, oil & gas or industrial applications.



Available in standard sizes or custom built to suit your organisation’s requirements, a portable spill bund is ideal as temporary bunding or for a permanent operation.



Our Portable Containment Bunds are manufactured here in Australia using heavy duty 900gsm PVC or 1,020gsm XR-5 geomembrane. Material options are highly resistant to punctures, tears, abrasions, ultraviolet radiation, temperature extremes, hydrocarbons, and a host of chemicals. Both the PVC and XR-5 bund offer longevity and suit a variety of applications.





Collapsible Bund Stands are Tough and Strong



ExoGuard’s collapsible bund is manufactured with a strong and durable stand design which can easily be folded and deployed. The stands are made with a durable marine grade batten to provide exceptional flexibility and strength. These battens ensure even if the bund were to fill completely, it would maintain it’s structure and hold the liquid. Stands can be driven over if the wall of the spill bund is collapsed. For added protection simply cover the folded down bund wall with a material such as an extra sheet of PVC.





Other Features of Portable Containment Bunds



Portable Containment Bunds are designed for easy set up and can be stored compactly when not in use (storage bags available)

Collapsible bunds can be fitted with drain ports to provide pump out access (a solid bund is the safest approach)

Materials are suitable for a wide range of chemicals including most hydrocarbons and many acids

The Portable Containment Bund can be easily cleaned in the instance of a chemical spill

Designed as drive over bunding – simply collapse a wall to drive in or out of the bund



As a permanent or temporary liquid containment bund, some common uses include tank bund, ISO tank bund, IBC bund, drum storage bund, generator bund and 20′ or 40′ container bund. Virtually any type of container or equipment could be stored in the bund when used as a secondary containment option to be compliant with AS 1940.



To make them even easier to use, the Portable Containment Bunds can be supplied with a:



Ground mat to increase their durability in harsh environments;

Liner for added protection against punctures or harsh chemicals;

Repair kit to keep you operating in the case of a puncture or small tear;

Carry bag to make it easy to move and store the bund (carry bags suitable to lift on fork)

These spill containment bunds and accessories are reusable so long as they are in good repair, properly cleaned and properly stored.



Applications for Portable Containment Bunds



Servicing area for vehicles and heavy machinery

Decanting station chemical containment

Temporary bunding for plant & equipment which have may have a spill risk

Bunded storage of IBCs, drums, ISO tanks, shipping containers, equipment or anything that might leak or spill

Wash down bays

Drive on and drive off fuel transfer areas



How to Choose the Right Size of Collapsible Bund



These portable spill containment berms can be manufactured to any size to a maximum of 20m x 15m. Here are some tips to choosing the size:



Increase the spill bund capacity or make a smaller footprint by choosing a higher wall. Options are 300mm or 500mm high.

Think about the footprint. The portable bund will be 1m wider and 1m longer than the internal measurement. A ground mat will require a little more space to the bund footprint.

Remember to leave space to:



Walk around inside the collapsible bund if necessary.

Fold down a wall for forklift loading the bund.

Give cranes ample clearance to drop in contents.

Open doors (such as a container door which swings out in a semi-circle).

Attach hoses to equipment or vehicles inside the spill bund.

Add a pump for draining the liquid containment bund.



Popular Sizes for Portable Containment Bunds



Suggested Application

Internal Dimension
(m)

Capacity (L)
300mmH wall

Capacity (L)
500mmH wall

Pallet

1.3 x 1.3

507

845


1.9 x 1.9

1,083

1,805

4 IBCs / 4 pallets

2.4 x 2.4

1,728

2,880

Car

6 x 3

5,400

9,000

ISO tank / 20’ Container

8 x 4

9,600

16,000


8 x 6

14,400

24,000


10 x 4

12,000

20,000

40’ Container

15 x 4

18,000

30,000


15 x 6

27,000

45,000

Truck

18 x 3

16,200

27,000



Area’s we service



Sydney, Newcastle, Wollongong, Canberra, Hunter Valley, Melbourne, Country Victoria, Tasmania, Adelaide, South Australia, Brisbane, Gladstone, Mackay, North Queensland, New Zealand, Perth, Port Hedland, Darwin, Northern Territory and all other areas of Australia & New Zealand.



Spill Bunds Factory Direct! All ExoGuard Bunding is Australian Made supporting Aussie Jobs and the Aussie Economy.

Specifications
SKU SC1212
Brand Exoguard
