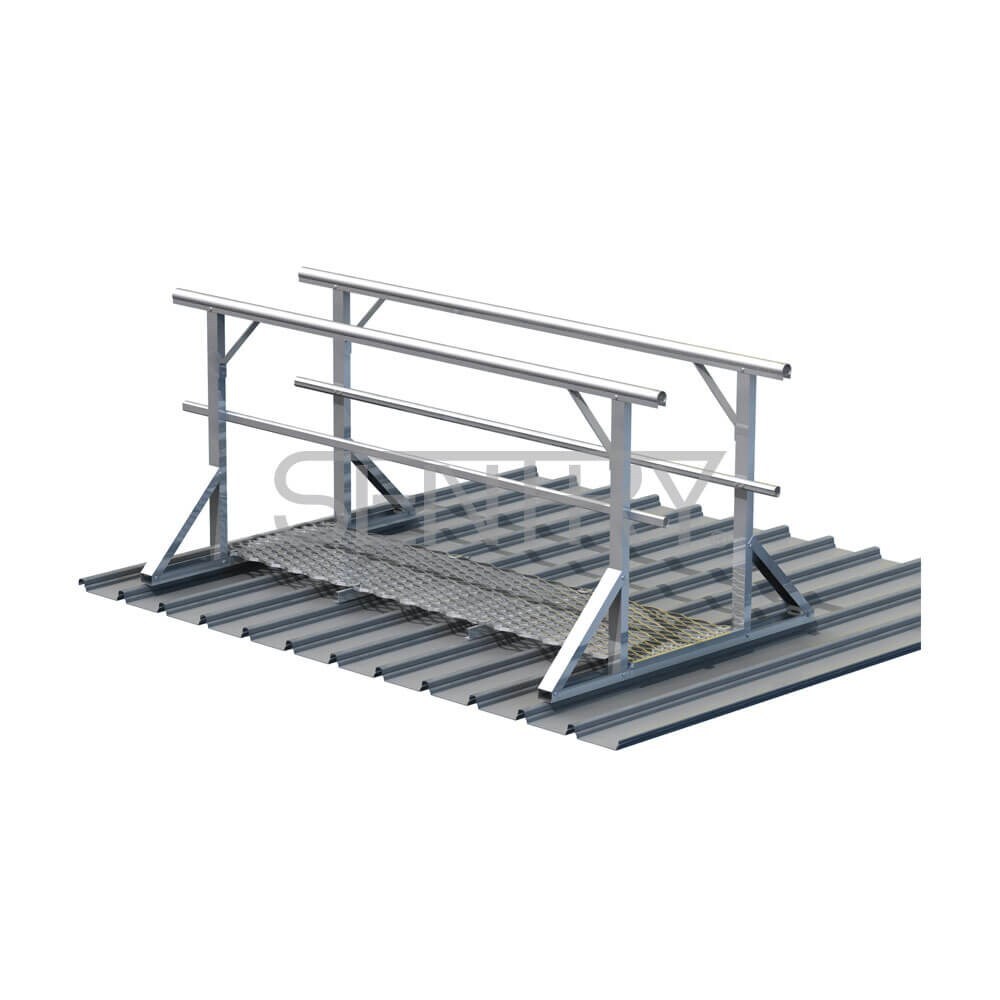

Walkway, Guardrail Both Sides - Length 6.0m

SKU: GW6.006

$2,015.86
Fast Onsite Delivery
30 Day Guarantee
100% Secure

Share

Description
MATERIAL

Guardrail

  • Post assemblies, hand & kneerails – profiled structural aluminium with option for powder coating
  • Universal elbows & end caps – die cast aluminium

Walkway

  • Mill finish, expanded aluminium grating
  • Roof battens – mill finish profiled aluminium
DIMENSIONS

Guardrail

  • Handrail component – 50mm diameter section mounted 1000mm to 1100mm above floor surface
  • Kneerail component – 40mm diameter section mounted 450mm below handrail
  • Post component – 60mm x 40mm RHS section, post length 950mm to 1100mm above floor surface
  • Post spacing – max 2.0m intervals

Walkway

  • Panel size – 6000mm (L) x 600mm (W)
  • Panel thickness – 13mm
  • Walkway support batten – 700mm (L) x 40mm (H)
WEIGHT
  • Guardrail – 2kg / m (approximate)
  • Walkway – 4.5kg / per linear metre (6.4kg per m²)
FIXINGS

Guardrail

  • Metal roof deck fixing (min 0.42 BMT) – 5mm construction grade Bulbtite rivets
  • Handrail to post fixing – 12-14 / 20mm tek screw
  • Kneerail to post fixing – 12-14 / 48mm tek screw

Walkway

  • Walkway to batten – 35mm SD Class 3 tek screw
  • Batten to roofdeck – 5mm construction grade Bulbtite rivet

Note: Max. batten increments – 670mm

ROOF PITCH INSTALLATION – WALKWAY
  • Can be installed up a slope to max 20°
  • To be levelled across a slope when greater than 7°.
COMPLIANCE

Sentry Guardrail and Walkway is designed and manufactured to comply with Australian Standard AS1657:2018 and relevant statutory OHS Codes of Practice / Guidelines.

PRODUCT WARRANTY

Guardrail

  • 10 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturer’s specifications and recommendations.

Walkway

  • 10 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturer’s specifications and recommendations.
INSPECTION AND MAINTENANCE

Visual inspection for any damage or loose fixings must be done periodically and prior to use. No certified maintenance is required. Basic wear and tear preventative maintenance is recommended, as per manufacturer’s specifications and recommendations.

IMPORTANT NOTE

Failure to supply and/or install proprietary product in accordance with above Standards and codes, specifications and instructions voids complete system certification and/or warranty.

Specifications
SKU GW6
Brand Sentry
